double side tape

double side polyimide tape

Online inquiry

products names:

Country:

Email:

The Phone:

Name:

Quantity:

Leave a message:

PRODCUTS overview

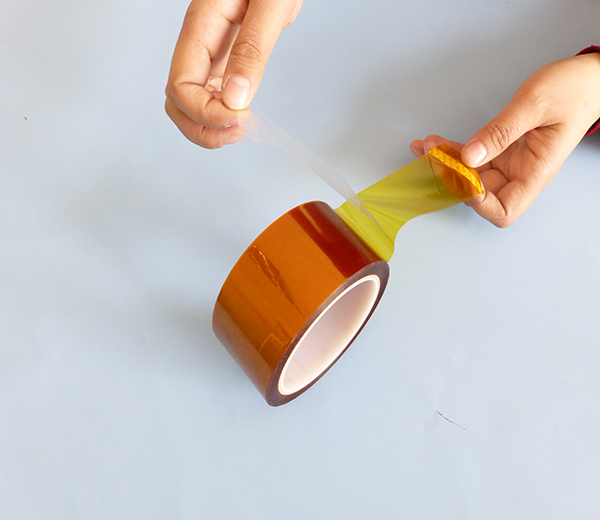

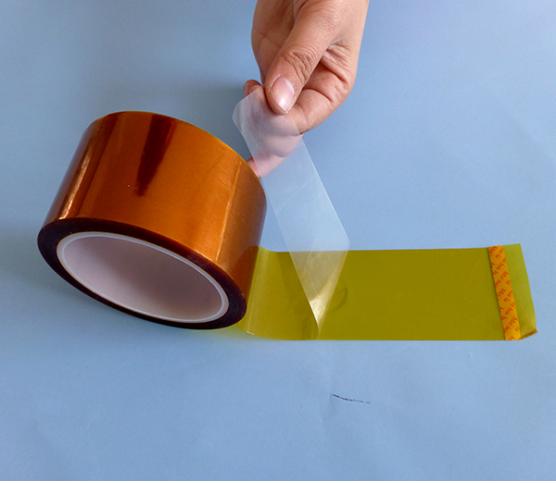

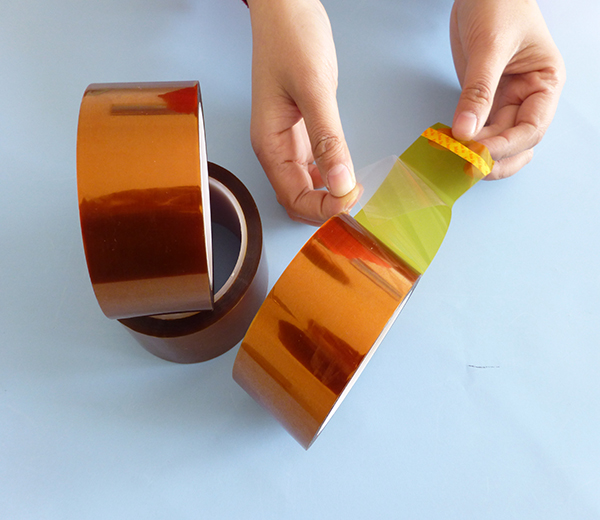

The doulbe side tape is with polyimide film as the basic carrier, and coated with the pressure-sensitive silicone adhesive on both sides, and combined with the fluorine release liner. It has excellent high temperature resistance, easy removal, and good adhesion.Mostly applied in the fixation of the surface board and the other parts during the production process of the electrical parts of digital products. Especially because of it’s excellent high tempearture resistance, it can also be used for the temperaly fixation, masking and protection of the accessories under high temperature process. It features good temperature resistance, good tensile strength, good chemical resistance, no residue, in line with ROHS and halogen free etc.

item

unit

result

outward



smooth and clean,no bubble,no adhesive remaining, soft and easy adhesion.

thickness

mm



0.095 mm±0.004mmfilm0.025mm+release liner

length

m

20M

Tensile strength

Mpa

140

Elongation at break

40

voltage resistance

KV

5

180°peel force

N/25mm

5

temperature resistance

30MIN

260℃
