PRODUCTS
PRODCUTS overview

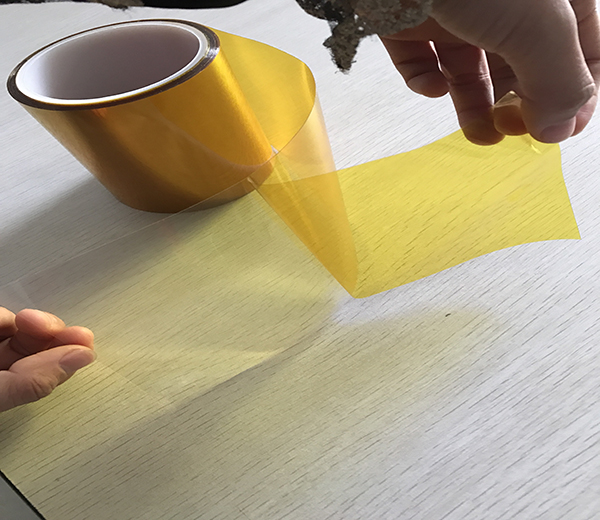

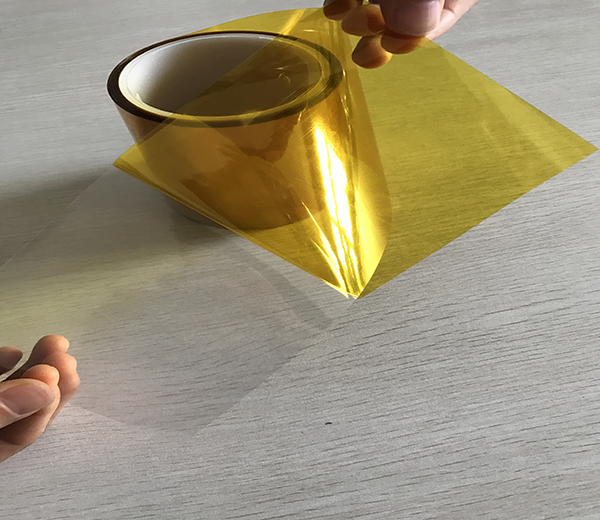

This tape is with polyimide film as the basic carrier, and coated with pressure sensitive silicone adhesive, and then combined with fluorine release liner. The tape can be removed from the liner very easily and lightly after die-cutting. We may make different shapes and sizes according to the customers’ requirements. With it’s excellent temperature resistance (260℃), easy removal and good adhesion, it has been widely used for the masking and protection of electrical parts.
|
|
→ fluorine release film |
|
|
→ silicone |
|
|
→ Polyimide film |
|
Items |
Datas |
|
Backing |
0.025mm polyimide film with fluorine release film |
|
Adhesion |
silicone |
|
Color |
amber |
|
Thickness (mm) |
0.06 |
|
Length (m) |
100M |
|
Width: |
500mm |
|
Adhesion (N/25mm） |
≥5 |
|
Removal strength（N/25mm） |
0.2 |
|
Tensile Strength (N/25mm） |
115 |
|
Elongation (%） |
40 |
|
Voltage resistance (KV） |
5 |
|
Temperature Resistance (℃） |
260 within half an hour |
